MS36
Description:

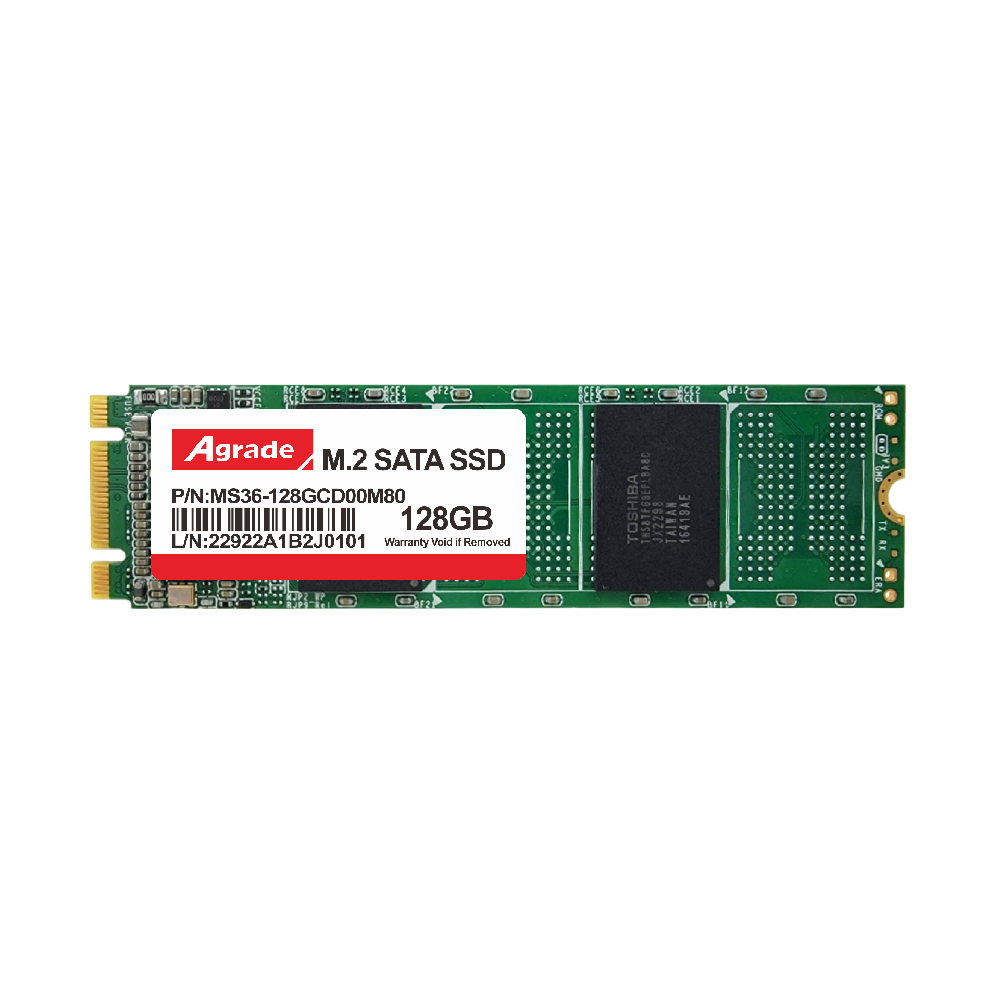

Agrade M.2 SATA SSD Module is the storage device based on NAND flash memory technology. This product Compliant with Serial ATA standard interface is suitable for data storage media and code storage device for embedded system and boot disk. AGRADE M.2 SATA SSD Modules have form factors 2280 with B-M key. By using M.2 SATA SSD Module, it is possible to operate good performance for the systems, which have SATA interface. With small form factor, the applicable appliance can add or install SATA storage device on its Mother Board or Complete set.
n Application Fields：
n Netbook, mini PC, mobile PC.
n Other machines and Equipments with Serial ATA Interface.
Features:
- SATAIII 6.0Gb/S
- Support S.M.A.R.T
- P/E：MLC(3000) SLC(60000)
- Advanced Wear Leveling and Error Checking and Correction
Description
| Product Name | Industrial M.2 SATA SSD |
| Series | Hi-Speed Series |
| Model Name | MS36 |
|
Capacity |
MLC：16GB~512GB
SLC：8GB~128GB |
|
Feature
|
* SATAIII 6.0Gb/S |
| * Support S.M.A.R.T | |
| * P/E：MLC(3000) SLC(60000) | |
| * Advanced Wear Leveling and Error Checking and Correction | |
| Shock / Vibration | 1500/20 |
| MTBF(h) | 2,000,000 |
| Operating Voltage | 3.3V |
| Operating Temperature | NT：0℃ ~ 70 ℃ WT：-40 ℃~85 ℃ |
| Storage Temperature | -55℃ ~95℃ |
| Sequential R/W Performance(Max) | Read：530MB/S Write：340M/S |
| Dimension(LxWxH) | 22mm(W)x80mm(L)x2.5mm(H) |
