ST40
Description:

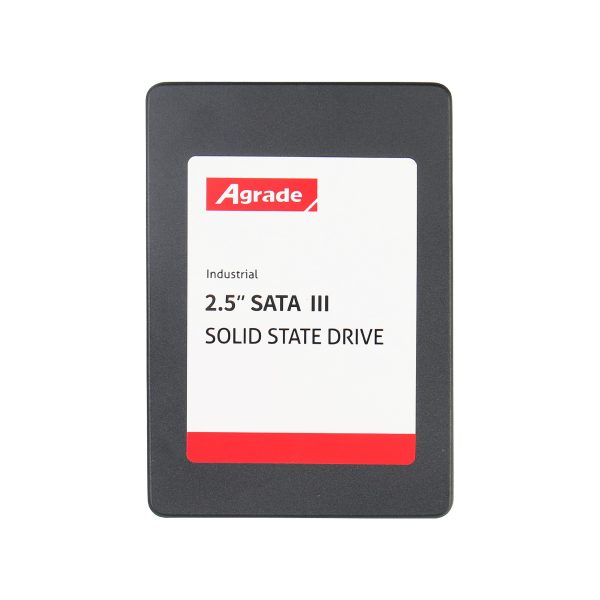

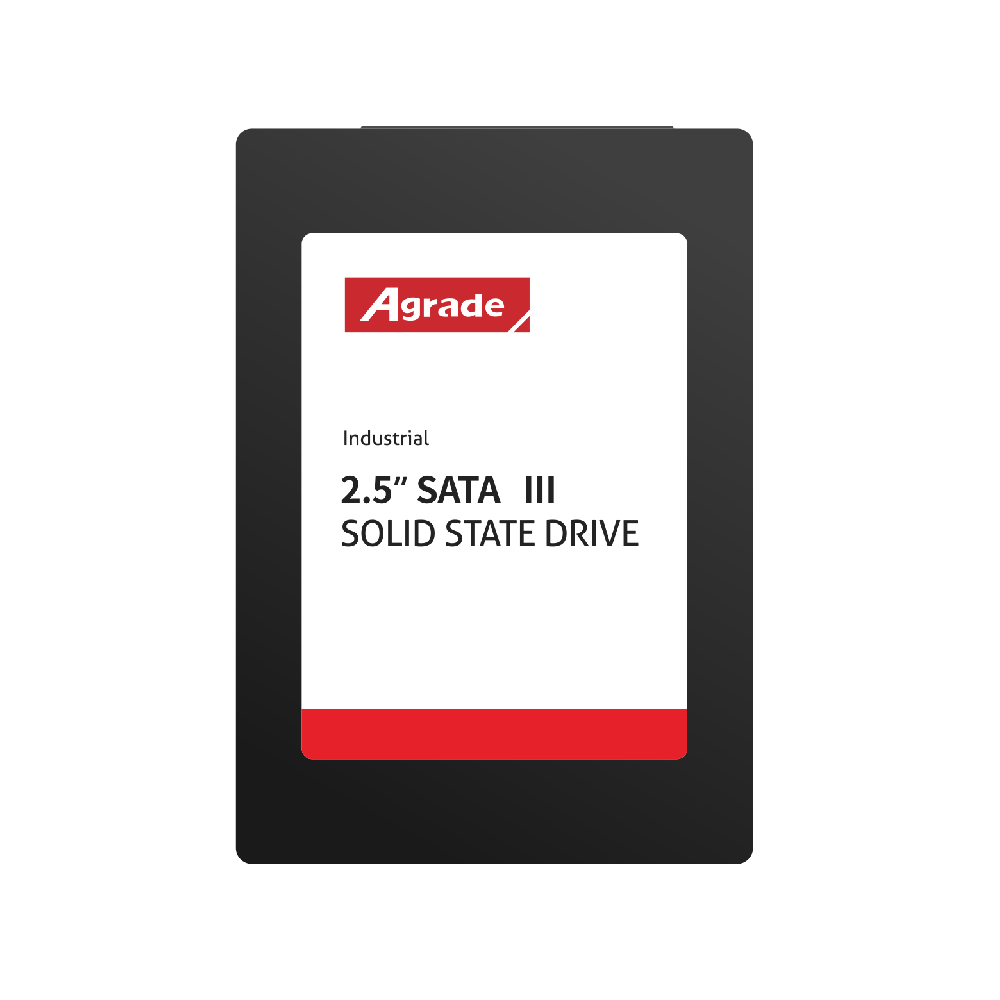

ST40 Series is AGRADE newly released enterprise grade 2.5” SSD. SATA III 6 Gb/s interface device built with high performance, quality flash memory, consists of MLC/SLC chip.Respectively, with sequential read and write speeds of up to 400 and 318MB/sec, both can enhance computer performance and meet user needs for highly stable and reliable storage solutions. Another innovative design feature is worth mention is ”Power Shield” , excellent electronic circuit design provides high efficiency power protection capacitor charging efficiency,when a suddenly power failure can protect the integrity of the data write.ST40 is the perfect storage device for industrial PCs, Enterprise-Grade Server, Vehicle System,Professional-Grade Photography System.
Features:
- Excellent Power Shield function
- External DRAM
- P/E：SLC(60000) MLC(3000)
- SATAIII 6.0Gb/S
- Advanced Wear Leveling and Error Checking and Correction
Description
| Specification | Details |
|---|---|
| Product Name | Industrial 2.5’’ SATAIII SSD |
| Series | Hi-Speed Series |
| Model Name | ST40 |
| Capacity | SLC：4GB~128GB MLC：4GB~512GB |
| Features |
|
| Shock / Vibration | 1500/20 |
| MTBF(h) | 2,000,000 |
| Operating Voltage | 5.0 V |
| Operating Temperature | NT：0℃ ~ 70℃ WT：-40℃ ~ 85℃ |
| Storage Temperature | -55℃ ~ 95℃ |
| Sequential R/W Performance(Max) | Read：500MB/S Write: 318MB/S |
| Dimension(LxWxH) | 100mm(L) × 69.85mm(W) × 7.0mm(H) |
